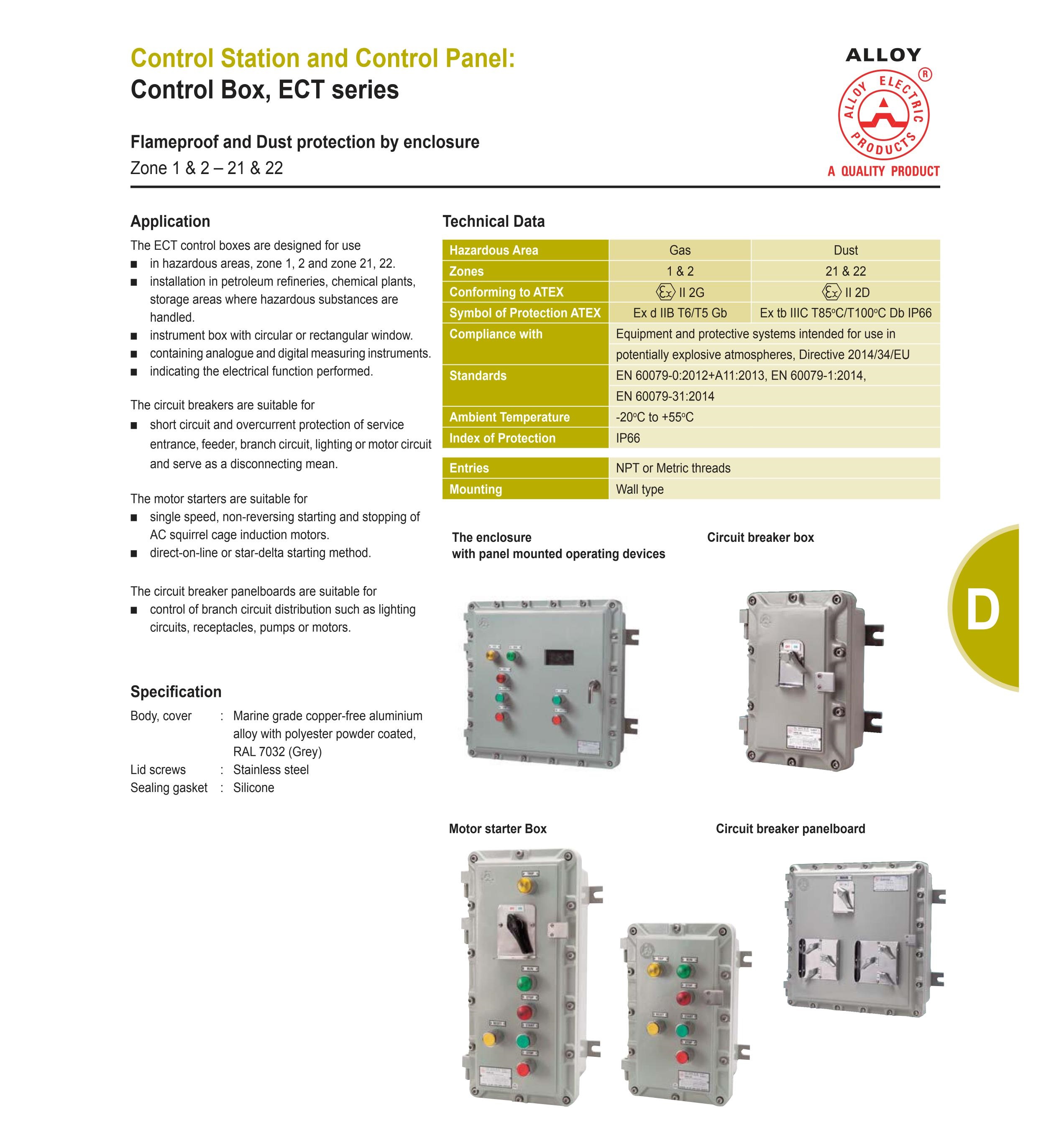

Control Panel – ECT

Application

The ECT control boxes are designed for use

  • in hazardous areas, zone 1, 2 and zone 21, 22.
  • installation in petroleum refineries, chemical plants, storage areas where hazardous substances are handled.
  • instrument box with circular or rectangular window.
  • containing analogue and digital measuring instruments.
  • indicating the electrical function performed.

Specification

  • Body, cover      : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)
  • Lid screws        : Stainless steel
  • Sealing gasket : Silicone

Technical Data

Ex d IIB T6/T5 Gb   |  Ex tb IIIC T85ºC/T100ºC Db IP66
